Digital LED Poster

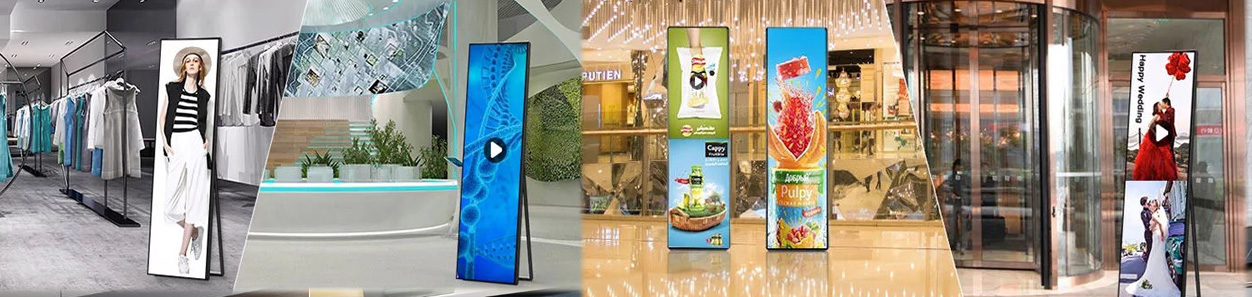

- * P3/P2.5/P2/P1.8.75 Multiple models for choices, suitable for shopping mall, cinema, road show, public information release and indoor & half-outdoor advertising
- * Using branded LED lamp, drive IC and 1.9mm thickness copper module board. It has 16Bit color, 3840Hz refresh frequency, 1024 levels grey scale and excellent user experience.
- * Poster brightness 1000-3000nits, 160 degree viewing angle and support direct view. Front maintenance type.
- * Supports independently works, configuration works and group control. Use cell phone / WIFI / U disk / computer / Enternet server to group control.
- * Floor standing / Hanging installation / Wall mounted installation / Tilt. Easily portable, fast installation. Plug and play operation. Nearly free labor works and handling charges.
Product Overall Description 1, Ultra-thin and light-weight body——thickness is 35 mm and weighing less than 40 kg, making installation easy and fast.
2, Optional installation solutions——fold-out stand, Hanging, standby, and wall-mounting can be realized to meet different demands.
3, HD visual experience——high refresh rate (2000Hz) and brightness (1200 nits) provide users with the perfect display.
4, High Brightness of outdoor 3.91mm,4.81mm with >6000 Nits, and Waterproof features for outdoor weather, stable and long lifetime.
5, Various work modes——besides single display work mode, multiple led display screen can be combined together creatively to bring a variety of display effect and improve the advertising efficiency.
6. Multiple communication modes——communication via USB, WIFI, network cable, and HDMI increase service efficiency. |
![]() |
Digital LED Poster Specification
MODEL | Poster 1.875 | Poster 2.0 | Poster 2.5 | Poster 3 | |
LAMP | LED Type | SMD(1515) | SMD(1515) | SMD(1515) | SMD(1515) |
MODULE | Pixel pitch | 1.875mm | 1.953mm | 2.5mm | 3mm |
LED module size(mm) | 240×240 | 250×250 | 160×160 | 192×192 | |
Resolution(W× H) | 128×128 | 128× 128 | 64× 64 | 64× 64 | |
LED driving method | 1/26 scan | 1/26 scan | 1/32 scan | 1/32 scan | |
CABINET | LED module layout | 2× 8 | 2× 7 | 4× 12 | 2× 12 |
Display Size(mm) | 480× 1920 | 750× 1750 | 640× 1920 | 576× 1920 | |
Resolution(W× H) | 256× 800 | 384× 896 | 256× 768 | 192× 640 | |
Net. weight/set | 32kg | 40kg | |||
Ingress Protection | Front /Rear IP40 | ||||
Power | AC 240/100±10% | ||||
Serviceability | Front service | ||||
DISPLAY | Max.Power consumption | 600W | 750W | 600W | 600W |
Avg.Power consumption | 200W | 250W | 200W | 200W | |
Viewing Angle(H/V) | 160°/160° | ||||
Brightness | 1200~1500 cd/m² | 1000cd/m 2 | 1200~1500 cd/m² | 1200~1500 cd/m² | |
Pixel density(pixel/m² ) | 169344 | 279936 | 160000 | 111111 | |
Contrast ratio | 4000:1 | ||||
Temperature/ Humidity | -10°C to 90% | ||||
Lifetime(50% brightness) | 80,000hours | ||||
Processing | 16bit | ||||
Refresh rate | ≥2880Hz | ||||
Frame rate | 60fps | ||||
Brightness level | Manually/Auto | ||||
Colors | 281trillion |
